- These connector are composed of:
- Aluminium alloy body.
- Brass range taking bolts.
- Intended primarily for use on stranded aluminium conductors, but may also be used to joint solid aluminium or stranded copper conductors.
- Bolts require 18mm A/F socket or spanner.
APPLICATION
These connectors are designed for joints where overall diameter or connector profile are critical considerations.
FEATURES
- Split design:
- Connectors can be assembled without bending the conductors.
- V interface:
- Ensures alignment and reduce connector resistance.
- Range taking bolt:
- Eliminate the need for various bolt lengths to suit conductor sizes.
- Solid moisture:
- Avoid moisture migration.
- Smooth profile:
- Prevents damage to insulation or sealing sleeves.
- Accommodates transitions between conductor types and sizes:
- Versatile.
SPECIFICATIONS
- Designed to meet BS4579 Part 1 & Part 3.
- Engineering Recommendation C79.

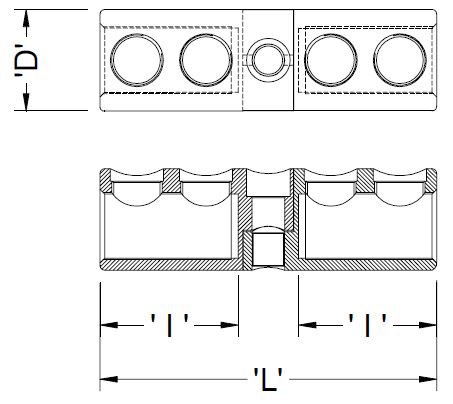

DIMENSIONS
