Description

The TransNet LV mechanical connector range includes both lugs and links for use on Low Voltage (LV) connections.  These connectors are range taking which helps to minimise the inventory required to cover the majority of LV connections and terminations in NZ.

Made from high strength, tin plated aluminium alloy, these connectors are made to the highest international standards and offer excellent reliable connections for LV installations up to 1kV.
  • For connections up to 1kV
  • Perfect for stranded and solid Aluminium and Copper LV cable
  • Tested to IEC61238-1
  • Range taking  for reduced inventory
  • Covers cable sizes 10-630mm2
  • Lugs and Links
  • Preset torque shear head bolts for correct connection every time

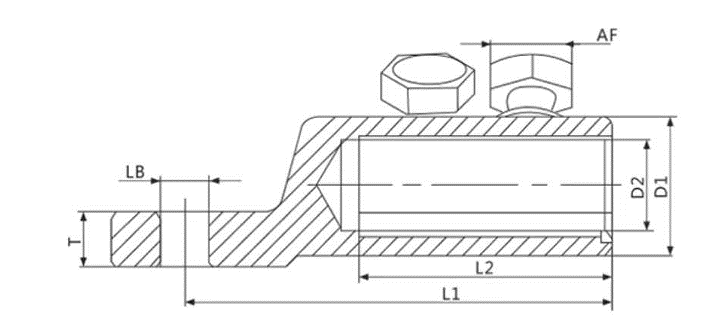

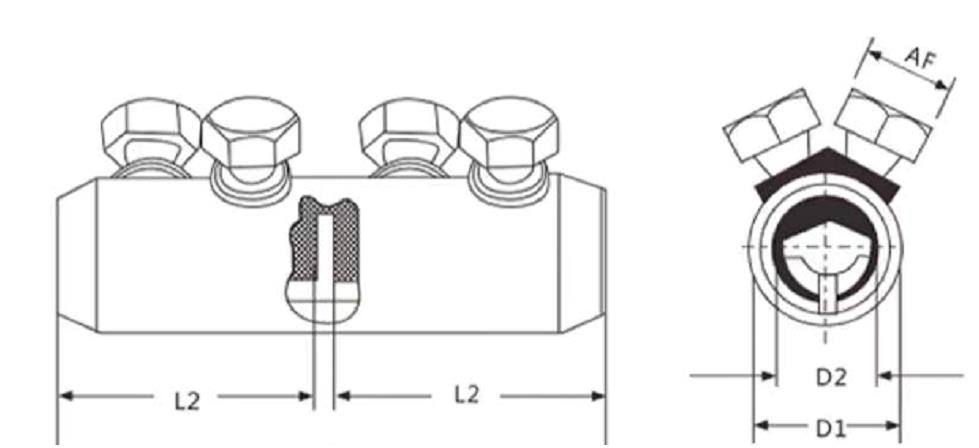

LV ShearBolts-87 LV ShearBolts lug-459
TNLVC - Mechanical Connector Links TNLVL - Mechanical Connector Lugs
1427344350 pdfDATASHEET  |  TNLVx Contractor Series Mechanical Connector Range


Questions?

In order to assist us in reducing spam, please type the characters you see:
Loading
Cat No. Type Cross Section
(mm2)		 D1 D2 L1 L2 LB Bolt Qty Bolt Size A/F
(mm)		 Qty
TNLVC-10/35
Link
10-35
19
8.5
45
20
N/A
2
13
TNLVC-25/95
Link
25-95
24
12.8
65
30
N/A
2
13
TNLVC-35/150
Link
35-150
28
15.8
80
35
N/A
2
17
TNLVC-95/240
Link
95-240
33
20
125
60
N/A
4
19
TNLVC-120/300
Link
120-300
37
24
140
65
N/A
4
20
TNLVC-185/400
Link
185-400
42
25.5
170
80
N/A
6
22
TNLVL-25/95-13
Lug
25-95
24
12.5
60
30
13
1
13
TNLVL-35/150-13
Lug
35-150
28
16
86
35
13
1
17
TNLVL-95/240-13
Lug
95-240
33
20
112
60
13
2
19
TNLVL-120/300-13
Lug
120-300
37
24
115
65
13
2
22
TNLVL-185/400-13
Lug
185-400
42
25.5
135
81
13
3
22
TNLVL-500/630-13
Lug
500-630
50
33
154
90
13
3
27
