High performance RS modular composite utility poles provide a cost effective, reliable solution where environmental conditions, grid hardening, weight, physical access, lead time, aesthetics, transportation, high strength, enhanced safety or long service life are required for new lines or pole replacements.
Significant portions of the utility grid were installed decades ago. Aging structures endure constant attack from rot, corrosion, woodpeckers and termites and are regularly challenged by ice storms, hurricanes, tornadoes, vandals and even vehicular impact.
New line construction and pole replacement can be problematic with long lead times, challenging terrain, right of way issues, environmental assessments, disposal costs, power interruptions and costly equipment requirements.
RS poles have been used by over 360 utilities worldwide, including installations in North America, Scandinavia, Europe, Australia, South America, Asia and the Caribbean.
THE RS POLE SOLUTION
RS Composite Utility Poles are constructed from combinations of standard-sized tubular modules to create poles with heights ranging from 30 ft. [9.1 m] to 155 ft. [47.2 m] that use standard industry hardware. RS poles deliver the following:
- Lowest Logistics Costs
with industry best lead times, more efficient transportation, fast installations and cost effective inventory management.
- Lowest Liability
with a limited 41 year limited warranty, high dielectric strength providing improved safety for workers and the public, better storm and high wind reliability, faster response times in emergencies and minimal environmental impact.
- Longest Life
with an 80 year service life, integrated UV protection requiring no scheduled maintenance resulting in the lowest life-cycle cost and immunity to rot, corrosion, woodpeckers and termites.
MATERIALS
RS poles are made from an advanced composite material with integrated UV protection that combines an ultra strong
polyurethane resin and E-glass fiber rovings. RS poles can also be pre-drilled and pre-assembled.
DESIGN
The RS pole’s unique tapered design enables the modules to be nested in compact bundles allowing for maximized efficiencies in storage and transportation. The eight module system can be configured to build virtually any pole class up to 155 ft. [47.2 m], which lowers the lead time for deliveries, reduces inventory requirements and simplifies transportation, handling and installation.
ADVANTAGES
- Hardware Compatibility
Smooth surfaced hardware are without cleats or sharp edges of contact should used with RS poles and is commonly available for round cross-sectioned steel and concrete poles. Solutions like steel bearing plates can be supplied by RS to enable the use of existing hardware.
- Superior Temperature Performance
RS’s composite material performs well in both hot and cold environments. The established temperature range is -76°F to +167°F [-60°C to +75°C].
- Fast Assembly
RS pole slip joints assemble in approximately 10 minutes each, or with the assistance of assembly racks, entire poles can be completed in 15 minutes with a crew of four. Poles can be pre-drilled for specific framing patterns and/or pre-assembled prior to shipping to reduce installation time.
- Modularity
Custom length and strength poles are created from standard sized modules for ultimate flexibility.

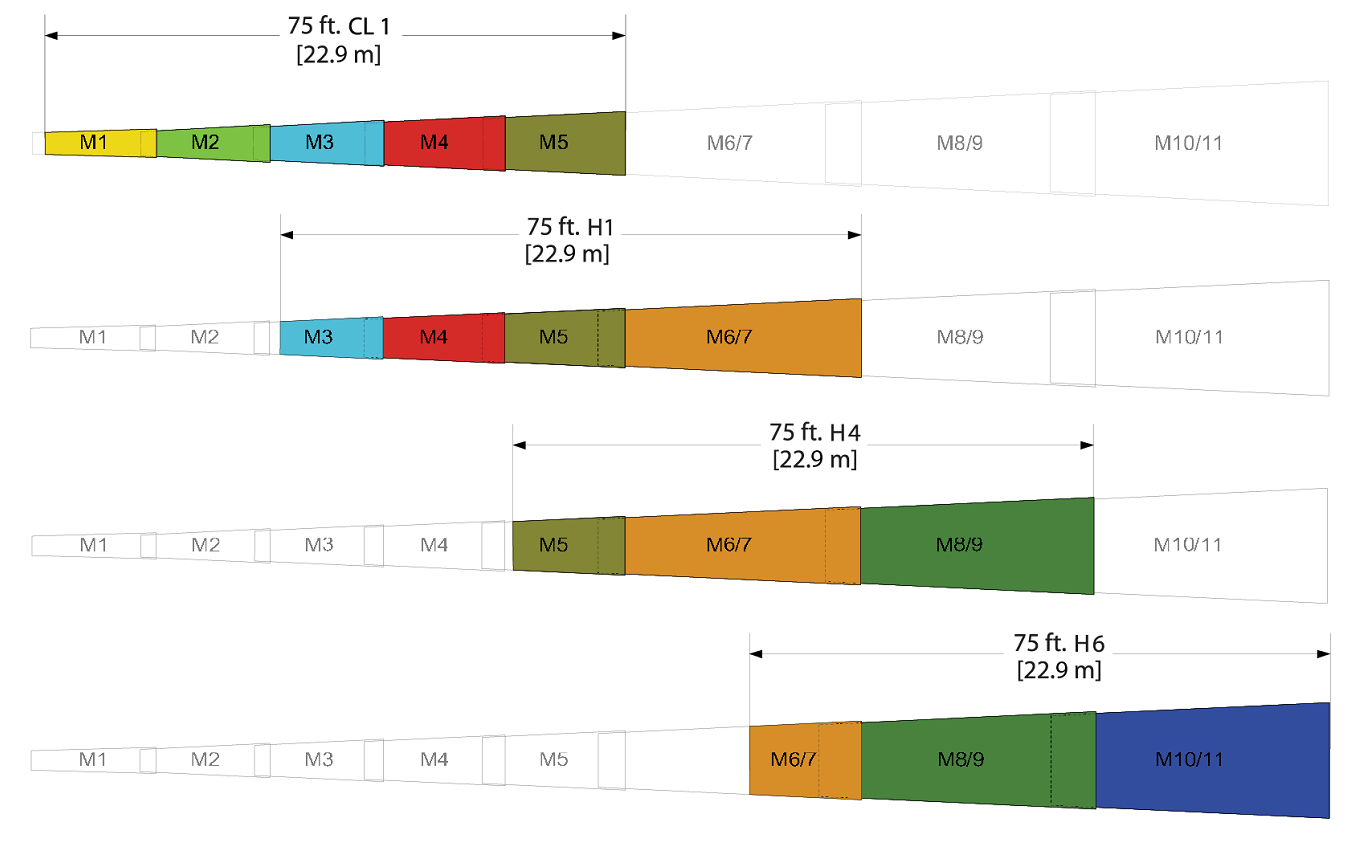

MODULAR COMBINATIONS
